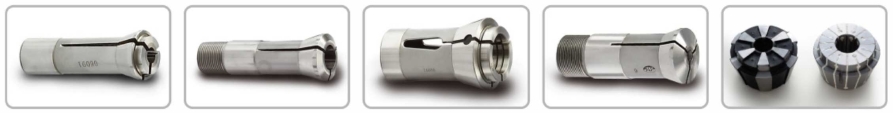

Компания Enituice Enterprise Co., Ltd изготавливает люнетные втулки, цанги главного шпинделя, цанги противошпинделя для автоматов продольного точения.

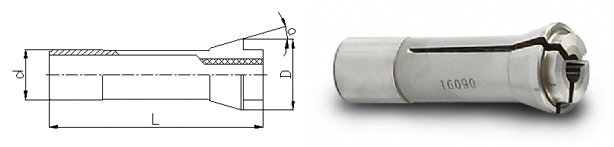

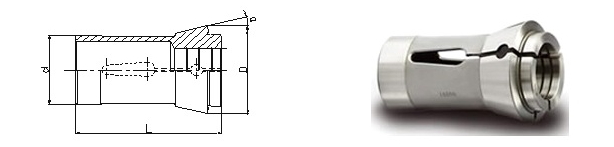

Зажимные токарные цанги ENITUICE  (Цанги для шпиндельных бабок)

Art-No	Type	Item No	d	L	D	DIN No	Schau No	NEU NO
140E	TRAUB A-15	1215	ø 22.0	55	ø 30.0	6343-22	F22/71
148E	TRAUB A-20	1220	ø 28.0	70	ø 38.0		F28/93	231.004
161E	TRAUB A-25	1225	ø 32.0	75	ø 45.0	6343-32	F32/221	231.005
162E	INDEX#25	1226	ø 35.0	70	ø 43.0		F35/67
163E	INDEX#30	1230	ø 35.0	80	ø 48.0	6343-35	F35/94
164E	#22 B&S  LICO#32	1232	ø 38.1	108	ø 49.0		F38/72	285.002
171E	INDEX#36	1236	ø 42.0	94	ø 55.0	6343-42	F42/99	231.007
173E	INDEX#42	1242	ø 48.0	94	ø 60.0	6343-48	F48/81	231.009
177E	INDEX#52	1252	ø 58.0	94	ø 70.0
185E	INDEX#60	1261	ø 66.0	110	ø 84.0	6343-60	F66/359	231.001
193E	INDEX#80	1280	ø 90.0	130	ø 107.0	6343-80
POLYGYM	#38	1238	ø 42.0	92	ø 51.0
LI CO	TNS-30/42	1240	ø 46.0	65	ø 55.0
	#65	1265	ø 72.0	142	ø 90.25
JINN FA	C-32	1332	ø 40.0	104	ø 54.5
	C-44	1342	ø 54.0	87	ø 68.0
	JCL-50	1350	ø 60.0	89	ø 72.0
	JCL-60	1360	ø 75.0	100	ø 93.0
	JCL-75	1375	ø 85.0	110	ø 98.0
MIYNO	BNC20	1721	ø 27.0	73	ø 38.0
	BNC34	1734	ø 44.4	108	ø 54.2
	#25	1725	ø 40.0	95	ø 45.0
RIKEN	SAD-25	1726	ø 30.0	66	ø 43.0
	SAD-40	1742	ø 48.0	84	ø 66.0
	SAD-50	1750	ø 56.0	94	ø 68.0
	SAD-65	1765	ø 75.0	100	ø 93.0

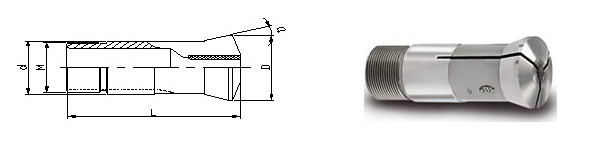

Подающие цанги ENITUICE (Направляющие цанги для шпиндельных бабок)

		Steel	Carbide
Machines	Type	Item No	Item No	d	L	D	Thread M
EGURO	#6	1015	2015	ø 19.0	76	ø 26.0	18.5X1.2
	#8	1020	2020	ø 25.0	102	ø 33.0	24X1.5
	#10	1024	2024	ø 32.0	118	ø 42.0	32X1.5
YUNGHO	YB-25	1025	2025	ø 32.0	104	ø 39.0	31.5X20f"
	YB-32	1032	2032	ø 39.0	119	ø 49.0	38X18f"
	YB-42	1042	2042	ø 52.0	137	ø 64.0	50X16f"
FUJI	#0825	1112	2112	ø 16.0	72	ø 24.0	15X0.85
	#1820	1120	2120	ø 28.0	100	ø 36.0	25X1.5
	#1825	1125	2125	ø 35.0	124	ø 49.0	33X1.5
	#1832	1132	2132	ø 43.0	137	ø 57.5	40X1.75
DAIWA	#10	1410	2410	ø 15.0	60	ø 21.0	15X1.0
	#102	1412	2412	ø 17.0	69	ø 24.0	17X1.0
	#15	1415	2415	ø 22.0	85	ø 28.0	21X1.0
KITAMURA	XKNC-15FA	1515	2515	ø 19.05	76	ø 26.0	18.5X1.25
	XKNC-20FA	1520	2520	ø 26.0	92	ø 34.0	25X1.25
HARDINGE	5C	1705	2705	ø 31.75	88	ø 37.3	31.3X20f"
	16C	1716	2716	ø 48.0	114.5	ø 57.4	47.5X1.75
	20C	1720	2720	ø 60.4	163	ø 73.2	60X1.5
RIKEN	PULL-25	1826	2826	ø 36.0	88	ø 44.0	32X1.5
	PULL-40	1840	2840	ø 55.0	110	ø 66.0	50X1.5
	PULL-60	1860	2860	ø 83.0	132	ø 97.0	78X2.0
CITIZEN	BL20/25	1820	2820	ø 33.0	100	ø 41.0	32X1.5
TSUGAMI	BM-16	1616	2616	ø 30.0	75	ø 38.0	25X1.5
STAR	SC-20	1920	2920	ø 30.0	79	ø 38.0	26X1.5
KATAMAZ	850	8024	2024	ø 37.0	101	ø 46.5	32X1.5
WACHIGAL	WPL-17	1517	2517	ø 23.0	97	ø 32.0	22X1.5
Wang Tzyy	#20	1320	2320	ø 28.0	82	ø 38.0	24X20f"
SENDAY	SD-25	1525	2525	ø 34.0	84	ø 41.5	29X20f"
	SD-32	1532	2532	ø 42.0	95	ø 49.0	38X20f"
	SD-34	1534	2534	ø 42.0	95.5	ø 51.0	36X1.5
	SD-45	1545	2545	ø 56.0	120	ø 68.0	51X20f"
	SD-52	1552	2552	ø 61.0	120	ø 68.0	56X20f"
SCHAUBLIN	W-12  80/00002	1612		ø 12.0	46	ø 16.0	S11.75X1.25
	W-12  80/93108	1611		ø 12.0	52	ø 16.0	S11.75X1.25
	W-20  80/00004	1620		ø 20.0	73	ø 26.3	S19.7X1.666
	W-25  80/00005	1625		ø 25.0	97.6	ø 33.7	S24.7X15f"
	HW-25 80/02010	1626		ø 25.0	97.6	ø 33.7	S24.7X15f"
	HB-32 72/02010	1632		ø 32.0	106	ø 40.0	S29.7X15f"
	L-20  77/00122	1613		ø 20.0	122	ø 28.0	S19.7X2.0
	B6    72/00128	1606		ø 6.0	31.мар	ø 10.5	5X36f"
	B46   72/02007	1246		ø 46.0	120	ø 60.3	40X1.5L
NANN	359E (K23)	1923		ø 23.0	94	ø 32.0	Tr23X1.5
	386E (K32)	1932		ø 32.0	114	ø 45.0	Tr32X1.5
	389E (K45)	1945		ø 45.0	145	ø 60.0	Tr45x2.0
	9049E	1246		ø 46.0	120	ø 60.3	40X1.5L
	9070E	1940		ø 53.0	136	ø 69.3	47X1.5L
	3640E(2)	1626		ø 25.0	97.6	ø 33.7	S24.7X15f"
	3714E	1632		ø 32.0	106	ø 40.0	S29.7X15f"
	3718E	1718		ø 32.0	124	ø 45.0	Tr32X1.5
Davenport	Burring	1921		ø 1.060"	4.375"	ø 1.190"	1.048"X16LH
	Serro B	1925		ø 1.218"	4.38"	ø 1.5"	1.143"X16RH
DMG	GM 16-6	8816		ø 30.0	80.5	ø 39.0	Bayonet
	GM 16-6 SUB	8817		ø 18.7	51.5	ø 25.0	Bayonet
	GMC 20	8820		ø 34.0	90	ø 42.0	Bayonet
	GMC 20 SUB	8821		ø 28.0	73	ø 32.0	Bayonet



Твердосплавные цанги ENITUICE

		Steel	Carbide
Machines	Type	Item No	Item No	d	L	D	Article No
CITIZEN	R04	6204	3204	ø 8,0	36	ø  11.5
	R07,D/F/G/L-I0	6910	3910	ø15.0	64	ø  21.0	F15/580	120E	TFl5	40,003
	Bl2,   Fl2	6212	3212	ø 16.0	64	ø  21.0
	D/E/F/L/M-16,E/F/L/M-20	6720	3720	ø 25.0	77	ø  35.0
	L16/20,Fl6/20,G20,E20,A20	6216	3216	ø 26.0	67	ø  36.0				511,001
	F25,   L25,   E25,   E25J	6225	3225	ø 30.0	78	ø  42.0
	L32,M32,E32,G32	6232	3232	ø 37.0	92	ø  47.0
STAR	JNC8	6508	3508	ø 12.0	51	ø  20.0
	SW7,SW10,JNCl0,RNCl0,SNCl0	6910	3910	ø 15.0	64	ø  21.0	Fl5/580	120E	TFl5	40,003
	SEl2,   S13,   VNCI2,   SJl5	6512	3512	ø 18.0	64	ø  25.0
	SBl6	6616	3616	ø 20.0	67	ø  26.0
	RNCI6,   SEI6,   SRI6,   SHl6	6516	3516	ø 20.0	67	ø  28.0	F20/87	138E	TF20	40,004
	JNC16, VNC20	6520	3520	ø 24.0	65,5	ø  32.0
	KNC16/20,SR20,VNC20	6720	3720	ø 25.0	77	ø  35.0
	JNC16,ZNC16,VNC20,J20	6216	3216	ø 26.0	67	ø  36.0
	KJR25,SCN25	6725	3725	ø 30.0	80	ø  42.0	F30/63	157E	TF30	40,006
	JNC32/25,   VNC32,MR32	6932	3932	ø 37.0	92	ø  47.0	F37/740	1536E	TF37	40,008
	STM38	1242	2242	ø 48.0	94	ø  60.0	F48/81	173E	TF48	231,009
TSUGAMI	T7,   BOO7,   BM07,NP-4W	6707	3707	ø 10.0	46	ø 16.0	Fl0/1178	lllE		140,001
	LIO	6710	3710	ø 14.0		ø 20.0
	NT/NPll	6910	3910	ø 15.0	64	ø 21.0	Fl5/580	120E	TF15	40,003
	BO12,NT/NP-12	6616	3616	ø 20.0	67	ø 26.0
	NP17,   NP16,   NT17	6717	3717	ø 23.8	62	ø 28.0			S16-HMS
	BO18A,S20,BO205A	6721	3721	ø 28.0	77	ø 35.0			S20-HM
	BO l 8B,S20,BO205B	6720	3720	ø 25.0	77	ø35.0
	BS26A,   BS25	6726	3726	33.0	80	40.0			S25-HM
	BS26B,   BS25	6725	3725	30.0	80	42.0	F30/63	157E	TF30	40,006
	NT/NP-32	6232	3232	37.0	92	47.0
	BH38	6738	3738	43.0	92	53.0	F43		TF43	511,024
	BH38(SUB)	6739	3739	48.0	100	54.0	F48		BS38	511,028
NOMURA	NSP8410,   NSP8420	6608	3608	12.0	58	18.0
	NSP1053,   NNl0K	6610	3610	16.0	50,5	22.0				90,015
	NSP1653,   NSP1253	6616	3616	20.0	68	26.0
	NN20KF	6216	3216	26.0	67	36.0				511,001
	P-23	6623	3623	29.0	72	39.0
	NNCP2553,   NN25K	6625	3625	32.0	84,5	42.0
	P-32	6632	3632	42.0	86	52.0
TORNOS	M4,T4,TV	6904	3904	8,0	42	12,0	FS/577	101E	TFS	40,001
	M7	6907	3907	10,0	47,5	15,5	Fl0/86	109E	TFl0	40,002
	MS7	6108	3108	13,0	64	19,0	Fl3/357	116E	TF13	40,016
	Rl0,Ml0	6910	3910	15,0	64	21,0	Fl5/580	120E	TF15	40,003
	Rl25	6912	3912	16,0	64	21,0	Fl6/1076	1212E	TF16	40,012
	Rl6,Ml5	6516	3516	20,0	67	28,0	F20/87	138E	TF20	40,004
	RR20,R20,M20	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
	M25	6725	3725	30,0	80	42,0	F30/63	157E	TF30	40,006
	MR32,TBM32	6932	3932	37,0	92	47,0	F37/740	1536E	TF37	40,008
TORNOS-DECO	MR32,TBM32	6907	3907	10,0	47,5	15,5	Fl0/86	109E	TFl0	40,002
	DECO 10	6910	3910	15,0	64	21,0	Fl5/580	120E	TF15	40,003
	DECO 13	6912	3912	16,0	64	21,0	Fl6/1076	1212E	TF16	40,012
	DECO 13/16	6816	3816	20,0		26,0	F20/201	136E	F20-201	225,003
	DECO 20, DELTA 12/20	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
	DECO 26, SIGMA 20	6826	3826	30,0	65	38,0	F30/101	1446E	0161	90,009
	DECO 32	6932	3932	37,0	92	47,0	F37/740	1536E	TF37	40,008
	DELTA 38/5	6738	3738	43,0	92	53,0	F43		TF43	511,024
	DELTA 38/5 (SUB)	6739	3739	48,0	100	54,0	F48		BS38	511,028
BECHLER ENC	ENC 74/75	6108	3108	13,0	64	19,0	Fl3/357	l16E	TF13	40,016
	ENC 162/164	6816	3816	20,0		26,0	F20/201	136E	F20-201	225,003
	ENC 163/167	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
BECHLER	A4,   A7	6107	3107	10,0	46	16,0
	A7,   AlO,   ARlO	6110	3110	14,0	46	18,0	Fl4/98	ll7E		140,002
	B12	6112	3112	18,0	67	25,0	FlS/85	127E		140,003
	B16	6116	3116	22,0	67	28,0	F22/88	139E		140,004
	B20,BR20	6120	3120	26,0	67	32,0	F26/90	146E		140,005
STROHM	M75-Ml05	6907	3907	10,0	47,5	15,5	Fl0/86	109E	TFl0	40,002
	Ml05/125	6910	3910	15.0	64	21.0	Fl5/580	120E	TF15	40.003
	M205/255	6920	3920	25.0	77	35.0	F25/64	145E	TF25	40.005
	M205/255	6725	3725	30,0	80	42,0	F30/63	157E	TF30	40,006
TRAUB	TNL 7	6907	3907	10,0	47,5	15,5	Fl0/86	109E	TFl0	40,002
	TNL 12/7	6910	3910	15,0	64	21,0	Fl5/580	120E	TF15	40,003
	TNL 12/7	6912	3912	16.0	64	21.0	Fl6/1076	1212E	TF16	40.012
	TNL 16	6816	3816	20.0	54	26.0	F20/201	136E	F20-201	225.003
	TNL 16	6516	3516	20,0	67	28,0	F20/87	138E	TF20	40,004
	TNL 20	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
WANGTZYY	SL-1693	6616	3616	20,0	68	26,0
	SL-2596	6225	3225	30,0	78	42,0
	SL-3295	6232	3232	37,0	92	47,0
POLYGYM	DIAMOND 12,12CS	6212	3212	16,0	64	21,0
	DIAMOND 16,16CS	6616	3616	20,0	68	26,0
	DIAMOND 16,16CS	6216	3216	26.0	67	36				511,001
	DIAMOND 25,25B,25CS,25CSB	6225	3225	30.0	78	42
	DIAMOND 32,32B,32CS,32CSB	6232	3232	37,0	92	47,0
	DIAMOND 32,32B,32CS,32CSB	1242	2242	48,0	94	60,0	F48/81	173E	TF48	231,009
JINN FA	JSL-20	6721	3721	28,0	77	35,0
	JSL-26	6726	3726	33.0	80	40.0
	JSL-32	6232	3232	37.0	92	47.0
	JSL-42AB	1342	2342	54,0	87	68,0
HANWHA	HANEXlL   SL12	6912	3912	16,0	64	22,0	Fl6/1076	1212E	TF16	40,012
	HANEX17,   ML18-G,   SL16	1215	2215	22,0	55	30,0	F22/71	140E		231,002
	HANEX20	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
	HANEX25 SL-32	6425 6932	3425 3932	32.0 37.0	79 92	45.0 47.0	F37/740	1536E	TF37	40,008
	SL-35	6435	3435	40,0	92	49,0
	SL-35HP-II,SUB	6436	3436	40,0	92	50,0
	SL-38HP-II	6438	3438	44,0	92	52,0	F44			511,026
NEXTURN	SA-12	6912	3912	16,0	64	22,0	Fl6/1076	1212E	TF16	40,012
	SA-l8,SA-20,SA-20e	6920	3920	25.0	77	35.0	F25/64	145E	TF25	40.005
	SA-26,SA-26e	1225	2225	32.0	75	45.0	F32/221	161E		231.005
	SA-32	6932	3932	37,0	92	47,0	F37/740	1536E	TF37	40,008
GAUTHIER	GM 12	6816	3816	20,0		26,0	F20/201	136E	F20-201	225,003
	GM 20	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
	GM 25	6725	3725	30,0	80	42,0	F30/63	157E	TF30	40,006
GILDEMEISTER	GLD 12	6516	3516	20,0	67	28,0	F20/87	138E	TF20	40,004
	GLD 16/20,GS20-L	6920	3920	25,0	77	35,0	F25/64	145E	TF25	40,005
	GLD 25L,GS25-L	1225	2225	32,0	75	45,0	F32/221	161E		231,005
	SPEED 32-10	6932	3932	37,0	92	47,0	F37/740	1536E	TF37	40,008
	SPRINT 42	1242	2242	48,0	94	60,0	F48/81	173E	TF48	231,009
PETERMANN	P4,P7	6004	3004	8,0	41	12,0	F8/1079			90,002
	P7	6907	3907	10,0	47,5	15,5	F10/86	109E	TFl0	40,002
	P7R	6010	3010	15,0	47	22,0	F15/358	121E		90,004
	Pl0,l0HSR	6011	3011	16,0	55	22,0	Fl6/104	123E		90,005
	Pl6	6016	3016	22,0	66	32,0	F22/727			90,007
MANURHIN	Swing 13,Traminer 13	6112	3112	18,0	67	25,0	F18/85	127E		140,003
	Twin 13,Decotum 16	6516	3516	20,0	67	28,0	F20/87	138E	TF20	40,004
	Traminer 16	6816	3816	20.0	54	26.0	F20/201	136E	F20-201	225.003
	KMX,Swing,Traminer,Twin 20	6920	3920	25.0	77	35.0	F25/64	145E	TF25	40.005
	KMX 26,Twin 20,Swing 20	1225	2225	32,0		45,0	F32/221	161E		231,005
	MirabelPM 32	1232	2232	38,1	108	49,0	F38/72	164E		285,002
MAIER	ML7	6907	3907	10,0	47,5	15,5	F10/86	109E	TFl0	40,002
	ML12G,ML12S,ML125K II	6910	3910	15,0	64	21,0	F15/580	120E	TF15	40,003
	ML18S,ML18H,ML20D	6920	3920	25.0	77	35.0	F25/64	145E	TF25	40.005
	ML26S,ML26H	6725	3725	30.0	80	42.0	F30/63	157E	TF30	40.006
	ML26D	1225	2225	32,0	75	45,0	F32/221	161E		231,005
	ML36	1236	2236	42,0	94	55,0	F42/99	171E		231,007
HARDINGE	S20,ST220	6920	3920	25.0	77	35.0	F25/64	145E	TF25	40.005
	ST225	6725	3725	30.0	80	42.0	F30/63	157E	TF30	40.006
DMG	GMC20	6320	3320	25,0	77	35,0

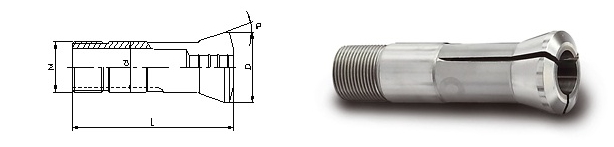

Люнетные втулки ENITUICE (Направляющие втулки для токарных станков)

Machines	Type	Item No	d	L	D	Thread M	Article No
CITIZEN	R04	5904	ø 9.0	44	ø 12.0	M8X0.75	3077E	1.001	TD4
	R07	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	D10,E10,F10,L10	5910	ø 16.0	59	ø 20.5	M14X1.0	3260E	8.001	TD10
	B12,F12,C12,A12	5212	ø 18.0	60	ø 22.0	M18X1.0	3319E	171.001	SD125R
	B20,M20,L20	5920	ø 28.0	82	ø 34.0	M25X1.0	3602E	22.001	TD25S
	L16/20,F16/F20,E20,WF6,206M	5216	ø 30.0	59	ø 35.0	M30X1.0		510.001
	F25,L25,E25,E25J	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	VNC32,G32,E32	5232	ø 42.0	82	ø 48.0	M40X1.0		28.янв	TD32
STAR	SW7	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	JNC-10,RNC-10,SNC-10	5910	ø 16.0	59	ø 20.5	M14X1.0	3260E	8.001	TD10
	SE12,VNC12,SJ15,SNC15	5512	ø 21.0	58	ø 24.0	M18X1.0	3438E	450.001	SNC15
	SB16,SR16	5616	ø 22.0	70.5	ø 26.0	M20X1.0		487.001	P1653D
	RNC16,SE16,SA16,VNC16,KNC16	5516	ø 22.0	68	ø 29.0	M22X1.0
	SA-16,SR-16	5916	ø 22.0	68	ø 29.0	M22X1.0	3455E	39.001	TD20R
	KNC16,VNCSR20	5920	ø 28	82	ø 34.0	M25X1.0	3602E	22.001	TD25S
	JNC16,L16/20,ZNC16,VNC20	5216	ø 30.0	59	ø 35.0	M30X1.0		510.001
	SCN-25,KJR-25	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	JNC32/25,VNC32/25,E32,SR32	5532	ø 42.0	82	ø 49.0	M40X1.0	3827E	28.001	TD32S
TSUGAMI	NP-4W	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	T7,BOO7,BM07	5707	ø 12.0	52	ø 15.8	M12X1.0	3149E	261.001
	L10	5710	ø 15.0	54	ø 19.0	M14X1.0
	NT-11,NP-11	5212	ø 18.0	60	ø 22.0	M18X1.0	3319E	171.001	SD125R
	BO12	5616	ø 22.0	70.5	ø 26.0	M20X1.0		487.001	P1653D
	NP-17,NP-16,NT-17	5717	ø 23	72	ø 28.0	M22X1.0		483.001	TSG20R
	NP-20,BS20,BO18,BS18	5720	ø 30.0	70	ø 36.0	M28X1.0		486.001	NN20KD
	BO20-CV	5721	ø 26.0	77	ø 29.0	M25X1.0
	BA-26	5726	ø 33.0	70	ø 38.0	M30X1.0
	BA-26L	5724	ø 32.0	70	ø 38.0	M30X1.0
	S-25,BS-26	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	NP-32	5532	ø 42.0	82	ø 49.0	M40X1.0	3827E	28.001	TD32S
	BH38	5738	ø 48.0	81	ø 54.0	M46X1.0
NOMURA	NS-P8410,NS-P8420	5608	ø 14.0	60.5	ø 20.0	M14X1.0		480.001	P853D
	NS-P1053,NN-10K,	5610	ø 16.0	63	ø 20.0	M14X1.0		481.001	P1053D
	NS-P1653,NS-P1253	5616	ø 22.0	70.5	ø 26.0	M20X1.0		487.001	P1653D
	NN-P20,NN-20KF	5620	ø 30.0	67.5	ø 35.0	M30X1.0
	NNC-P2553,NN-25K	5625	ø 36.0	89	ø 44.0	M36X1.0
TORNOS	M4,T4,TV	5904	ø 9.0	44	ø 12.0	M8X0.75	3077E	1.001	TD4
	M7	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	M7,MS7	5908	ø 13.0	68	ø 17.0	M13X1.0		45.001	CD25
	R10,M10,R125,MS7	5910	ø 16.0	59	ø 20.5	M14X1.0	3260E	8.001	TD10
	R10,M10,R125	5212	ø 18.0	60	ø 22.0	M18X1.0	3319E	171.001	SD125R
	M15,R16,RR20	5915	ø 22.0	68	ø 29.0	M19X1.0	3454E	13.001	TD20
	M15,R16,RR20	5916	ø 22.0	68	ø 29.0	M22X1.0	3455E	39.001	TD20R
	RR20,	5920	ø 28.0	82	ø 34.0	M25X1.0	3602E	22.001	TD25S
	M20,M25	5925	ø 36.0	74	ø 43.0	M27X1.0
	M20,M25	5923	ø 32.0	70.5	ø 40.0	M32X1.0	3708E	282.001	TSD20
	MR32	5932	ø 44.0	87.5	ø 53.0	M40X1.0	3835E	27.001
TORNOS-DECO	DECO 2000-7	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	DECO 2000-10	5910	ø 16.0	59	ø 20.5	M14X1.0	3260E	8.001	TD10
	DECO 2000-13/16	5816	ø 24.0	61	ø 29.5	M24X1.0	3507E	61.002	201
	DECO 2000-20	5820	ø 28.0	81	ø 34.0	M25X1.0	3610E	18.001	TD25/167
	DECO 2000-26	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	DECO 2000-32	5532	ø 42.0	82	ø 49.0	M40X1.0	3827E	28.001	TD32S
TRAUB	TNL 12/7	5312	ø 18.0	60	ø 22.0	M16X1.0	3320E	166.001	SD125R16
	TNL 16	5916	ø 22.0	68	ø 29.0	M22X1.0	3455E	39.001	TD20R
	TNL 17	5920	ø 28.0	82	ø 34.0	M25X1.0	3602E	22.001
	TNL 20	5820	ø 28.0	81	ø 34.0	M25X1.0	3610E	18.001	TD25/167
	TNL 26	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
POLYGYM	DIAMOND 12,12CS	5212	ø 18.0	60	ø 22.0	M18X1.0	3319E	171.001	SD125R
	DIAMOND 16,16CS	5616	ø 22.0	70.5	ø 26.0	M20X1.0		487.001	P1653D
	DIAMOND 20,20B,20CS,20CSB	5216	ø 30.0	59	ø 35.0	M30X1.0		510.001
	DIAMOND 25,25B,25CS,25CSB	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	DIAMOND 32,32B,32CS,32CSB	5232	ø 42.0	82	ø 48.0	M40X1.0		28.янв	TD32
	DIAMOND SY-42	5542	ø 50.0	82	ø 56.5	M49X1.0
HANWHA	HANEX11,SL12	5212	ø 18.0	60	ø 22.0	M18X1.0	3319E	171.001	SD125R
	HANEX17,ML18-G	5916	ø 22.0	68	ø 29.0	M22X1.0	3455E	39.001	TD20R
	HANEX20	5920	ø 28.0	81	ø 34.0	M25X1.0	3602E	22.001	TD25S
	HANEX25	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	SL-35	5435	ø 45.0	82	ø 52.0	M42X1.0
STROHM	M75-M105	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	M105/125	5312	ø 18.0	59	ø 22.0	M16X1.0	3320E	166.001	SD125R16
	M205/255	5915	ø 22.0	68	ø 29.0	M19X1.0	3454E	13.001	TD20
BECHLER	A4,A7	5904	ø 9.0	44	ø 12.0	M8X0.75	3077E	1.001	TD4
	A7,A10	5107	ø 12.0	52	ø 15.0	M12X1.0	3149E	261.001
	A7,A10,AR10	5915	ø 22.0	68	ø 29.0	M19X1.0	3454E	13.001	TD20
	B12,B16,B20	5820	ø 28.0	81	ø 34.0	M25X1.0	3610E	18.001	TD25/167
BECHLER ENC	ENC 74/75	5910	ø 16.0	59	ø 20.5	M14X1.0	3260E	8.001	TD10
	ENC 162/164	5816	ø 24.0	61	ø 29.5	M24X1.0	3507E	61.002	201
	ENC 163/167	5820	ø 28.0	81	ø 34.0	M25X1.0	3610E	18.001	TD25/167
GAUTHIER	1hR	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	GM 12	5910	ø 16.0	59	ø 20.5	M]14X1.0	3260E	8.001	TD10
	GM 20	5915	ø 22.0	68	ø 29.0	M19X1.0	3454E	13.001	TD20
GILDEMEISTER	GLD 12	5312	ø 18.0	60	ø 22.0	M16X1.0	3320E	166.001	SD125R16
	GLD 16/20,GS20-L	5820	ø 28.0	81	ø 34.0	M25X1.0	3610E	18.001	TD25/167
	GLD 25L,GS25-L	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
PETERMANN	P4,P7	5904	ø 9.0	44	ø 12.0	M8X0.75	3077E	1.001	TD4
	P7R,10,10HS	5910	ø 16.0	59	ø 20.5	M14X1.0	3260E	8.001	TD10
	P16	5816	ø 24.0	61	ø 29.5	M24X1.0	3507E	61.002	201
MANURHIN	Swing 13,Traminer 13	5312	ø 18.0	60	ø 22.0	M16X1.0	3320E	166.001	SD125R16
	Twin 13,Decotum 16	5916	ø 22.0	68	ø 29.0	M22X1.0	3455E	39.001	TD20R
	Traminer 16	5915	ø 22.0	68	ø 29.0	M19X1.0	3454E	13.001	TD20
	KMX,Swing,Traminer,Twin 20	5820	ø 28.0	81	ø 34.0	M25X1.0	3610E	18.001	TD25/167
	KMX 26	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	Mirabel PM 32	5532	ø 42.0	82	ø 49.0	M40X1.0	3827E	28.001	TD32S
MAIER	ML7	5907	ø 11.0	52	ø 14.5	M10X0.75	3134E	3.001	SW7
	ML12G,ML12S,ML125K II	5312	ø 18.0	60	ø 22.0	M16X1.0	3320E	166.001	SD125R16
	ML18S,ML18H,ML20D	5916	ø 22.0	68	ø 29.0	M22X1.0	3455E	39.001	TD20R
	ML20	5920	ø 28.0	82	ø 34.0	M25X1.0	3602E	22.001	TD25S
	ML26S,ML26H,ML26D	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	ML32	5532	ø 42.0	82	ø 49.0	M40X1.0	3827E	28.001	TD32S
NEXTURN	SA-12	5312	ø 18.0	60	ø 22.0	M16X1.0	3320E	166.001	SD125R16
	SA-12	5212	ø 18.0	60	ø 22.0	M18X1.0	3319E	171.001	SD125R
	SA-18,SA-20,SA-20e	5920	ø 28.0	82	ø 34.0	M25X1.0	3602E	22.001	TD25S
	SA-26,SA-26e	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
	SA-32	5532	ø 42.0	82	ø 49.0	M40X1.0	3827E	28.001	TD32S
HARDINGE	S20,ST220	5720	ø 30.0	70	ø 36.0	M28X1.0		486.001	NN20KD
	ST220	5920	ø 28.0	82	ø 34.0	M25X1.0	3602E	22.001	TD25S
	ST25,ST225	5725	ø 34.0	87.5	ø 41.0	M34X1.0	3733E	451.001	CD25
DMG	GMC 20	5820	ø 28.0	82	ø 38.0	M25X1.0	3610E	18.001	TD25/167



Специальные цанги ENITUICE
